Hydro-Probe BX

Brix, moisture and dissolved solids sensor: For mounting in pressurised vessels

Measurement:

  • Moisture
  • Brix
  • Ambient temperature

Typical Materials:

  • Liquids
  • Dissolved solids
  • Powdered products
  • Paints
  • Pharmaceutical powders

Unique Key Features:

  • High temperature sensor for material operating range of up to 125°C.
  • Shape ensures good compaction of material presented for precise measurement.
  • Choice of measurement modes for optimum sensor performance.

Calandria / Pressure vessel

  • Install into the bottom of vessel/pan or on the side of the vessel. Suitable for pressures from vacuum to 6 bar.

Pipeline

  • Install into a pipeline.

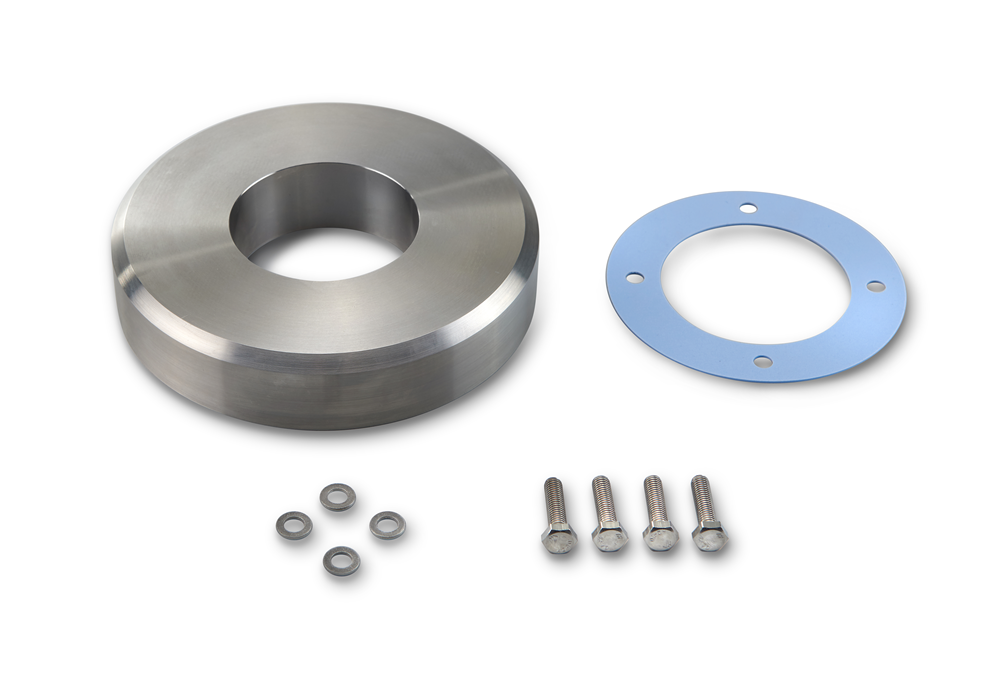

  • 3010 HPBX/HPSE Mounting Boss and Mounting Gasket (includes part 3020)

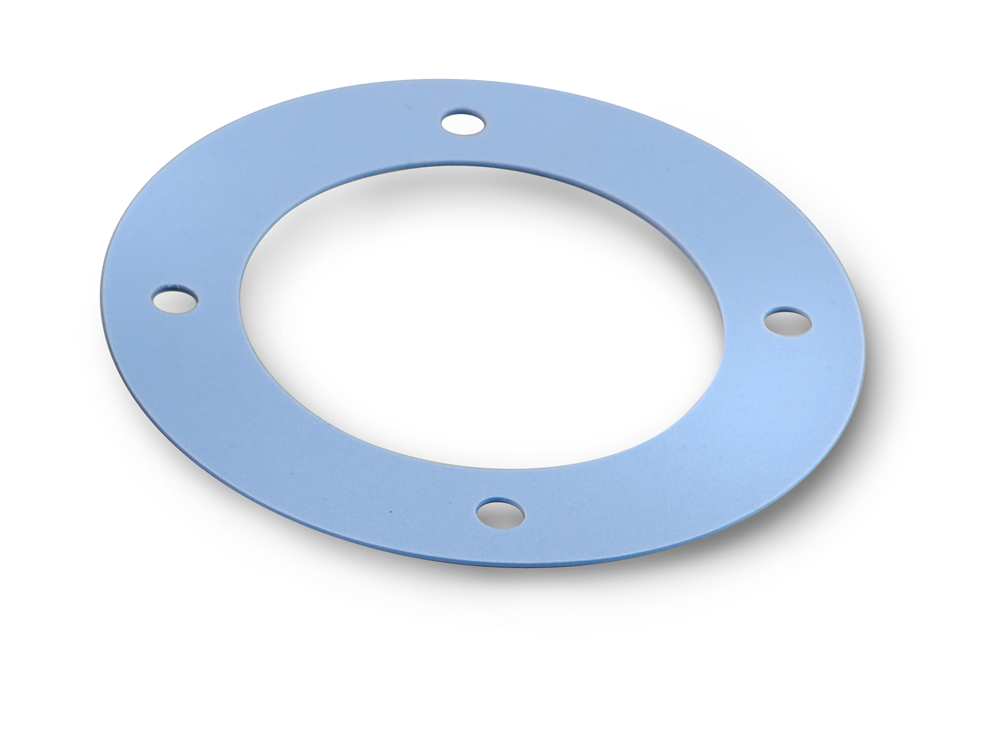

  • 3020 HPBX/HPSE Mounting Gasket (spare part for Mounting Boss 3010)

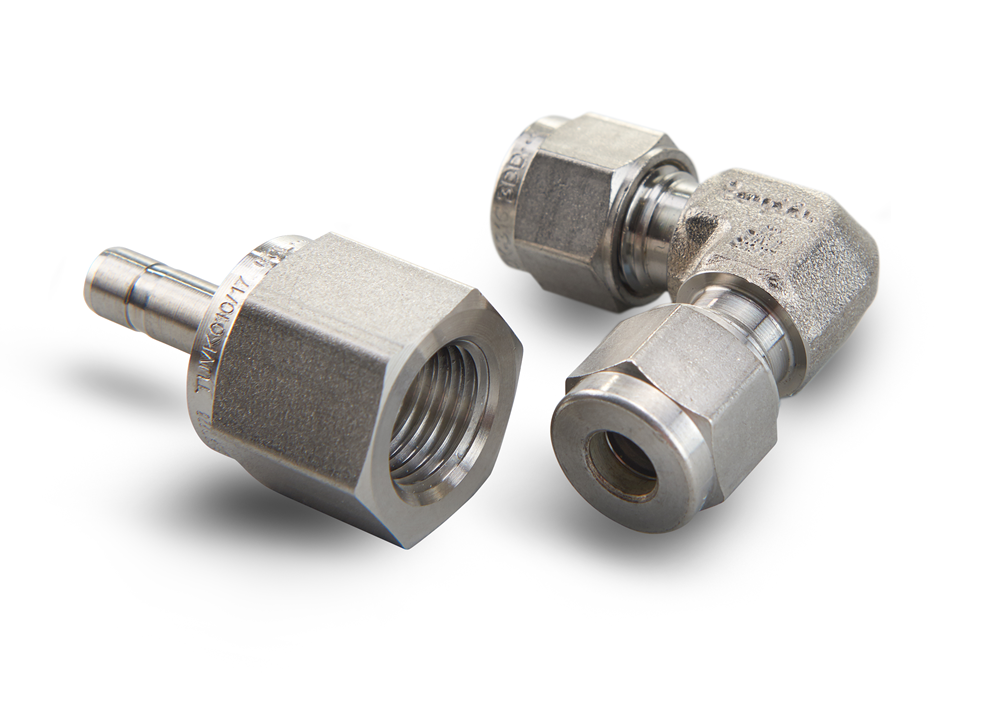

  • 3150 HPBX-SC Cleaning System connection kit 6mm – ¼″ BSP
  • 0975A 4m Sensor Cable
  • 0975AT Sensor Cable with Network Termination (4, 10, 25 and 50m)
Digital Technology
Digital technology provides precise, linear moisture measurement.
Advanced Digital Signal Processing
The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
Measurement Modes
Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
Fully Temperature Compensated Measurement
The sensor internally adjusts for mechanical changes due to temperature fluctuations
Easy to Interface
Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
Fast Measurement
Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
Temperature Measurement
Temperature output is available to provide a readout of material temperature.
Accuracy of Measurement
All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
Sensor Configuration
Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
Calibration
The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
Simple Power Requirements
The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables
