Water Controller

Installation Points:

  • Panel mount or enclosure fixing

Unique Key Features:

  • Stand alone unit designed for the accurate addition of water into a mixer.
  • 10.1" LCD colour display touch screen.
  • Different operating modes for each recipe.
  • Over 99,000 recipes can be stored.
  • Suitable for new and retrofit systems.
  • Designed to work with all common forms of water addition to a mixer.
  • System integration - ethernet, WEB API and RS232 communication.
  • Remote connection for diagnostics and support.

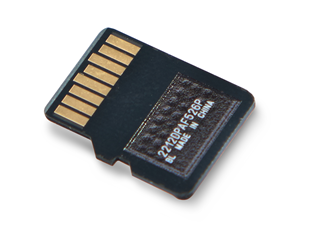

  • 7025 HC07 Replacement System Card

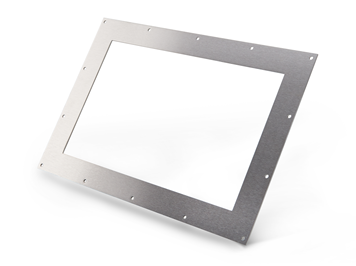

  • 7050 Hydro-Control Model HC06 to HC07 adapter plate

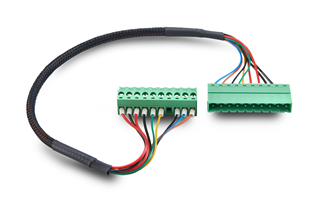

  • 7060 Hydro-Control Model HC06 to HC07 adapter cable
  • 7100 HC07 Wall Mounting Enclosure for Hydro-Control Unit IP66 (NEMA4)

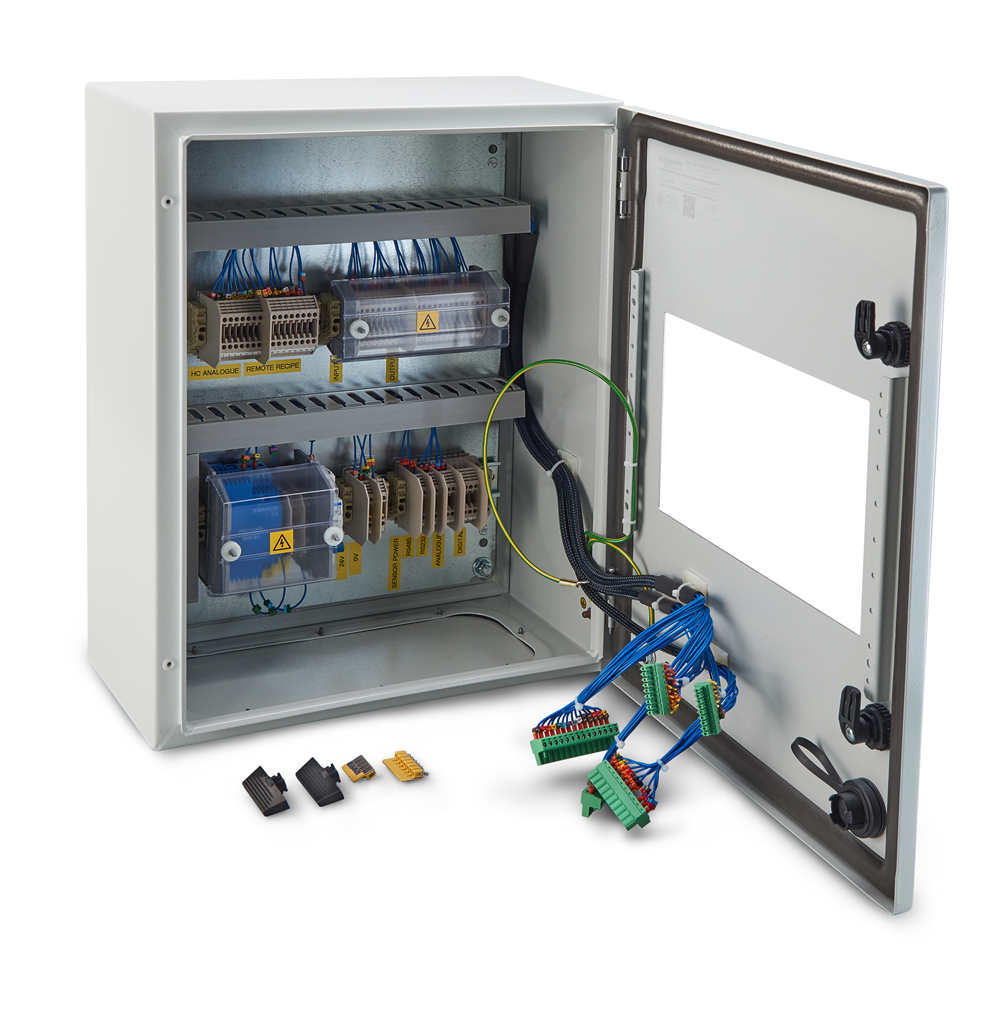

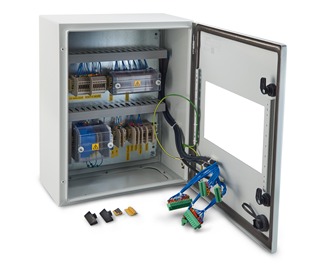

  • 7200 HC07 Control Cabinet (pre-wired for easy connection to field wiring)
Digital Technology
Digital technology provides precise, linear moisture measurement.
Advanced Digital Signal Processing
The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
Measurement Modes
Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
Fully Temperature Compensated Measurement
The sensor internally adjusts for mechanical changes due to temperature fluctuations
Easy to Interface
Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
Fast Measurement
Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
Temperature Measurement
Temperature output is available to provide a readout of material temperature.
Accuracy of Measurement
All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
Sensor Configuration
Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
Simple Power Requirements
The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
Modbus to control system
Input / Output connections
Recommended field cabling:
  • Six pairs twisted (12 cores total) screened (shielded) cable with 22 AWG, 0.35mm2 conductors
  • Screen (shield): Braid with 65% minimum coverage plus aluminium/polyester foil
  • Recommended cable types: Belden 8306, Alpha 6373
  • Maximum cable run: 100m, separate to any heavy equipment power cables

Enquire about Hydro-Control


Check out our technical resources for self-help.
For further support with your Hydronix installation, please contact our friendly support team.
