Thermo-Tuff

High speed rugged temperature sensor for bins and mixers

Measurement:

  • Batch Temperature

Typical Materials:

  • Sand
  • Cement
  • Concrete
  • Asphalt
  • Aggregates

Unique Key Features:

  • Rugged, hard-wearing design for abrasive materials.
  • Choice of fixing option for easy installation.
  • Temperature range from 0°C up to 80°C.

Processes

Bin / Silo

  • Mount in the flow of material inside the bin or underneath the bin gate.

Mixer

  • Install into the floor or belly of the mixer.

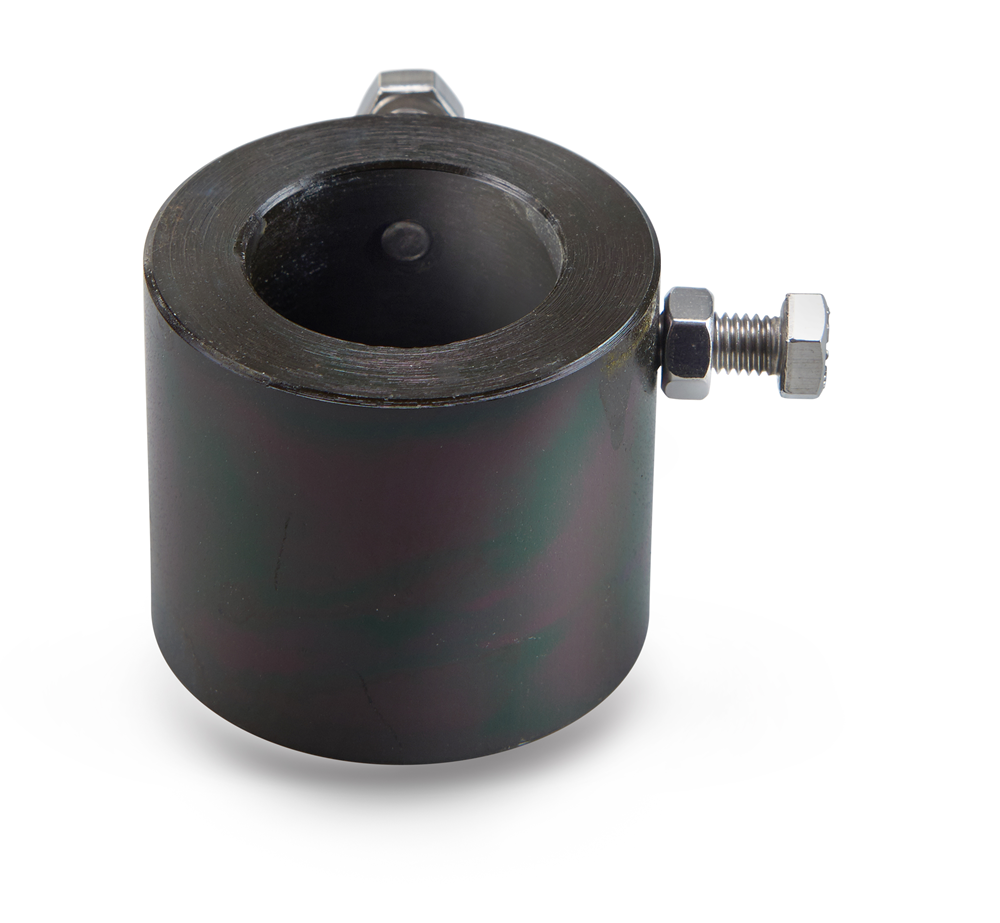

  • 0310 Thermo-Tuff Mounting Collar

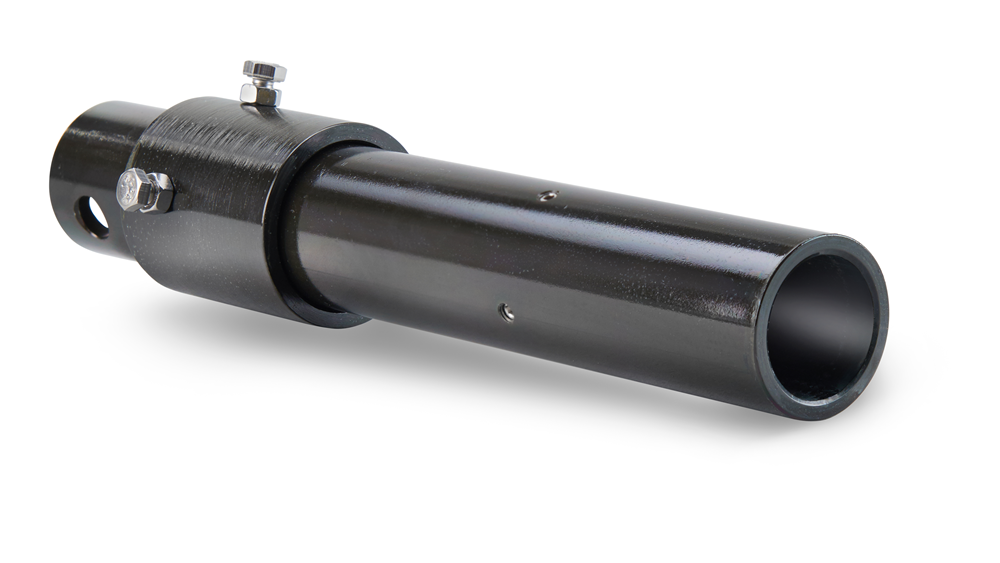

  • 0320 Thermo-Tuff Extension Mounting Sleeve
Digital Technology
Digital technology provides precise, linear moisture measurement.
Advanced Digital Signal Processing
The sensor response may be adjusted remotely using the Hydro-Com software to minimise the effects of noise of the measured signal. Advanced Digital Signal Processing provides a clear signal with a rapid response.
Measurement Modes
Choice of measurement modes for optimising sensor performance in a variety of applications and material types (except Hydro-Probe).
Fully Temperature Compensated Measurement
The sensor internally adjusts for mechanical changes due to temperature fluctuations
Easy to Interface
Two analogue outputs and digital RS485 communications and configurable digital inputs / output make the sensor simple to integrate into a control system. Includes Modbus.
Fast Measurement
Measuring at 25 times per second, the sensor continuously detects changes in the moisture of the materials throughout processing.
Temperature Measurement
Temperature output is available to provide a readout of material temperature.
Accuracy of Measurement
All measurements can be calibrated to an accuracy of 0.2% for aggregates (0.1% in the mixer) and 0.5% for other materials.
Sensor Configuration
Sensors can be remotely configured using Hydro-Com diagnostic software or Hydro-View/Hydro-Hub. All readings and sensor parameters are available including the type of output and filtering characteristics.
Calibration
The sensor may be internally calibrated using Hydro-Com software, or the linear output may be calibrated within the control system or remotely by using the Hydronix Hydro-View/Hydro-Hub interfaces.
Simple Power Requirements
The sensor may be powered from a 15-30V dc supply. Multiple sensors may be driven from a single power source.
